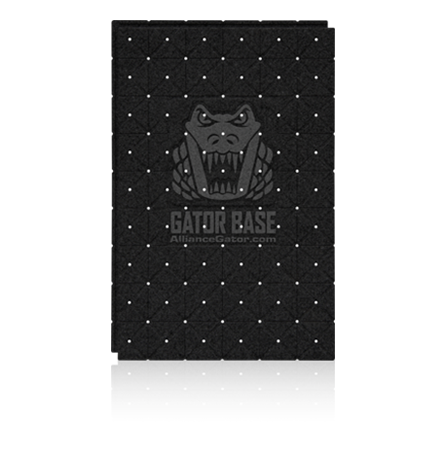

Alliance Gator Base Panel 2x3
$28.85
Gator Base is a lightweight polypropylene panel that replaces about 6 in. of compacted crushed stone base under pedestrian hardscapes. It is used under patios, walkways, pool surrounds, fire pits and seating walls up to 18 in. high, with concrete pavers, natural or wet cast stone, or porcelain. Panels lock together with a tongue-and-groove system, drain through built-in channels, and go down over geotextile and about 3/4 in. of compacted sand or No. 9 stone.
How it's sold
Priced each. Enter the number of units you need as the quantity.
Each panel covers about 5.8 sq ft of usable area; panels come 10 per pack.
Specifications
- Panel size: 24.25 in. x 36.25 in. (6.1 sq ft total; 5.79 sq ft usable)
- Thickness: 3/4 in.
- Material: High-density polypropylene; 100% recyclable
- Replaces: About 6 in. of compacted crushed stone (one panel equals about 288 lb of stone)
- Load rating: Up to 8 PSI dynamic load; pedestrian applications only
- Insulation: R-value 3.6
- Packaging: 10 panels per pack; 120 panels per pallet
- Compatible with: Gator Edge and Gator Base Screws; Gator Fabric GF4.4
Ordering notes
- Pedestrian use only — not for driveways.
- Order Gator Edge and Gator Base Screws separately for the perimeter.
- Ships direct from the manufacturer or distributor. Contact us for current lead time.
