Belgard Diamond Wall
$9.17

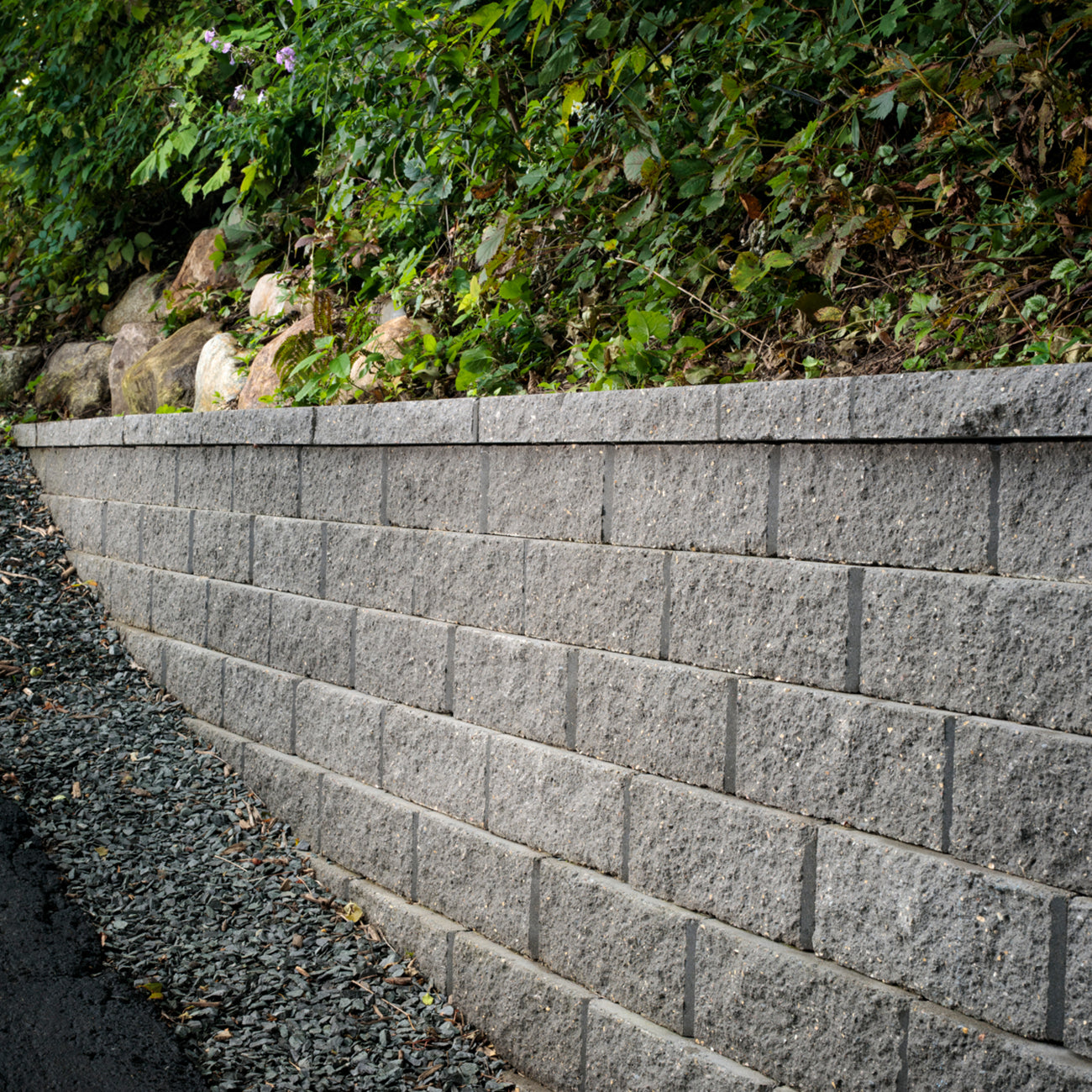

Diamond is the original rear-lip retaining wall block with a split-stone face. It builds straight or curved walls, terraces, columns and steps. Gravity walls go up to about 4 ft 6 in including the buried course; taller walls need engineered geogrid.
How it's sold
- Retaining Wall, Large Step Block: priced per block
- XL Wall Cap: priced per cap
Enter the number of units for each option as the quantity.
Wall cap full pallet: 54 caps (about 67.5 linear ft), about 3,138 lbs.
Ordering at a glance

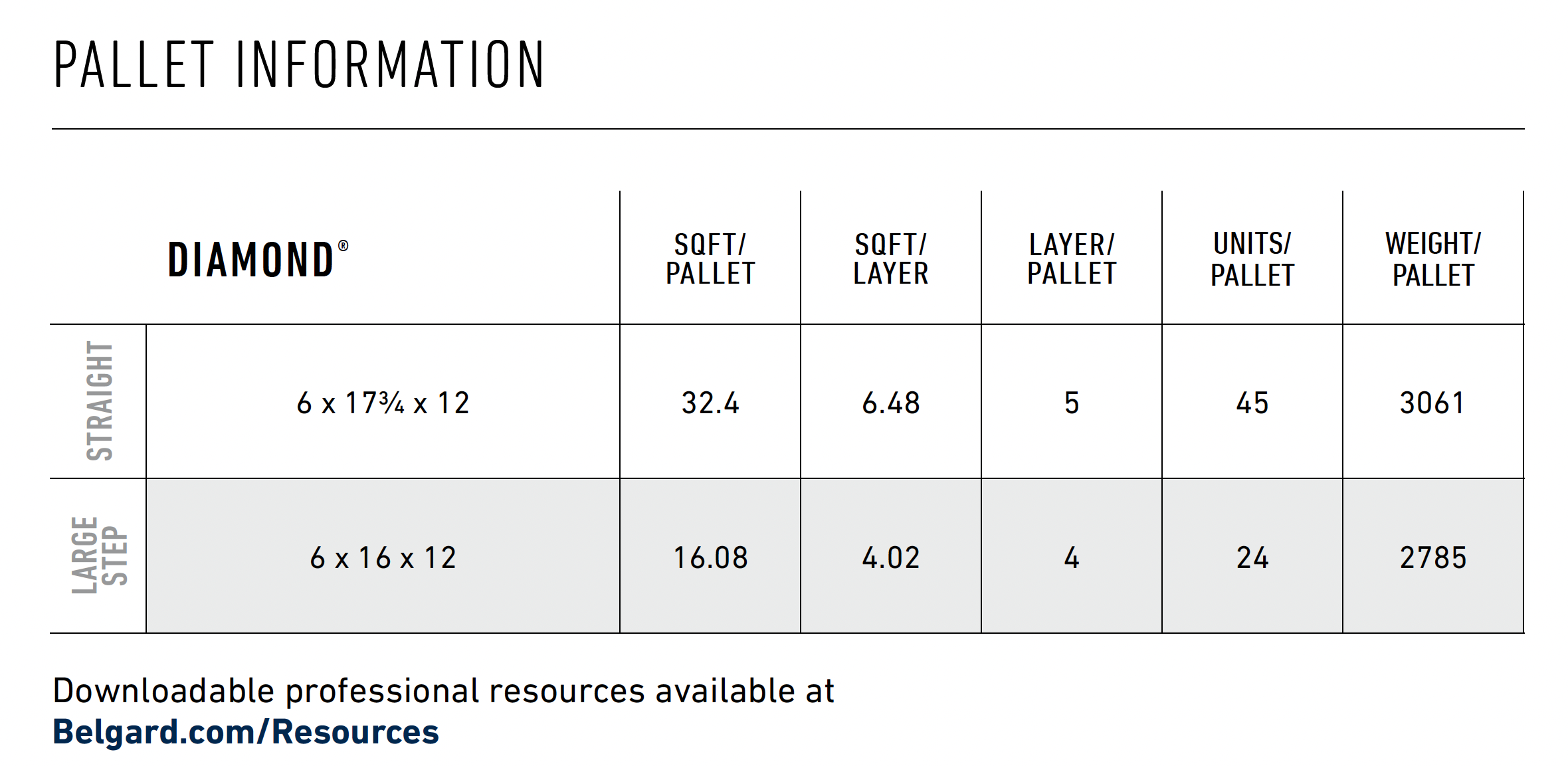

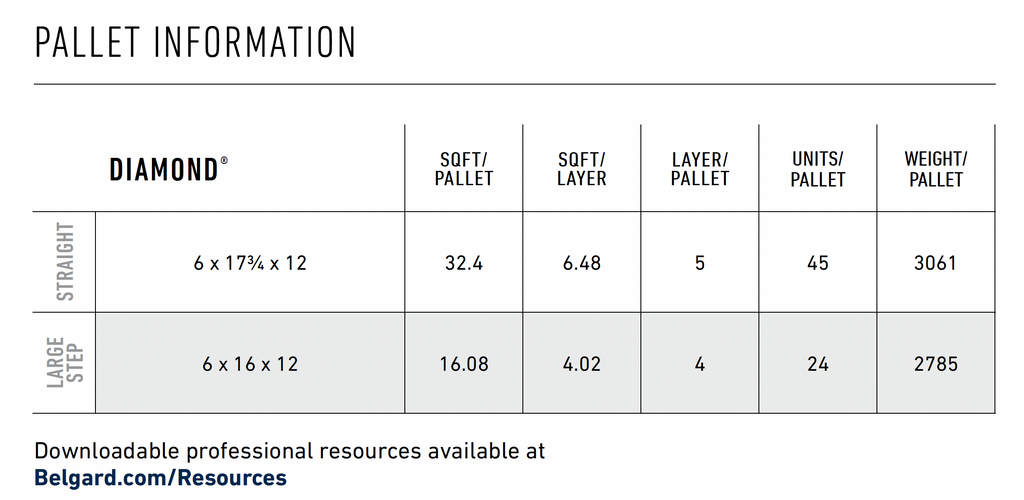

- Wall block full pallet: 45 blocks; 32.4 sq ft of wall face; 5 layers of 9; about 3,061 lbs
- Face per block: about 0.72 sq ft (32.4 ÷ 45)
- Weight per block: about 68 lbs (3,061 ÷ 45)
- Large step full pallet: 24 steps; 4 layers; about 2,785 lbs (about 116 lbs each)
- Cap full pallet: 54 caps; 67.5 linear ft; 6 layers; about 3,138 lbs
- Cap coverage: 1.25 linear ft (15") per cap; about 58 lbs each
- Note: Figures are from Belgard's 2026 Northfield Pro Consultation Guide (plants: Shakopee MN, Morris IL, Mundelein IL, Menomonee Falls WI); where it splits IL vs MN, MN figures are used.
Pallet counts and weights are approximate and can vary by manufacturing plant.
Specifications
- Wall block: 6 x 17 3/4 x 12 in
- Large step: 6 x 16 x 12 in
- Cap: 4 x 18/12 x 12 in (tapered)
- Setback / batter: 1 1/8 in / 10.6°
- Min. radius: 2 ft outside (top course), 4 ft inside (base course)
- Max gravity height: 4 ft 6 in incl. buried course

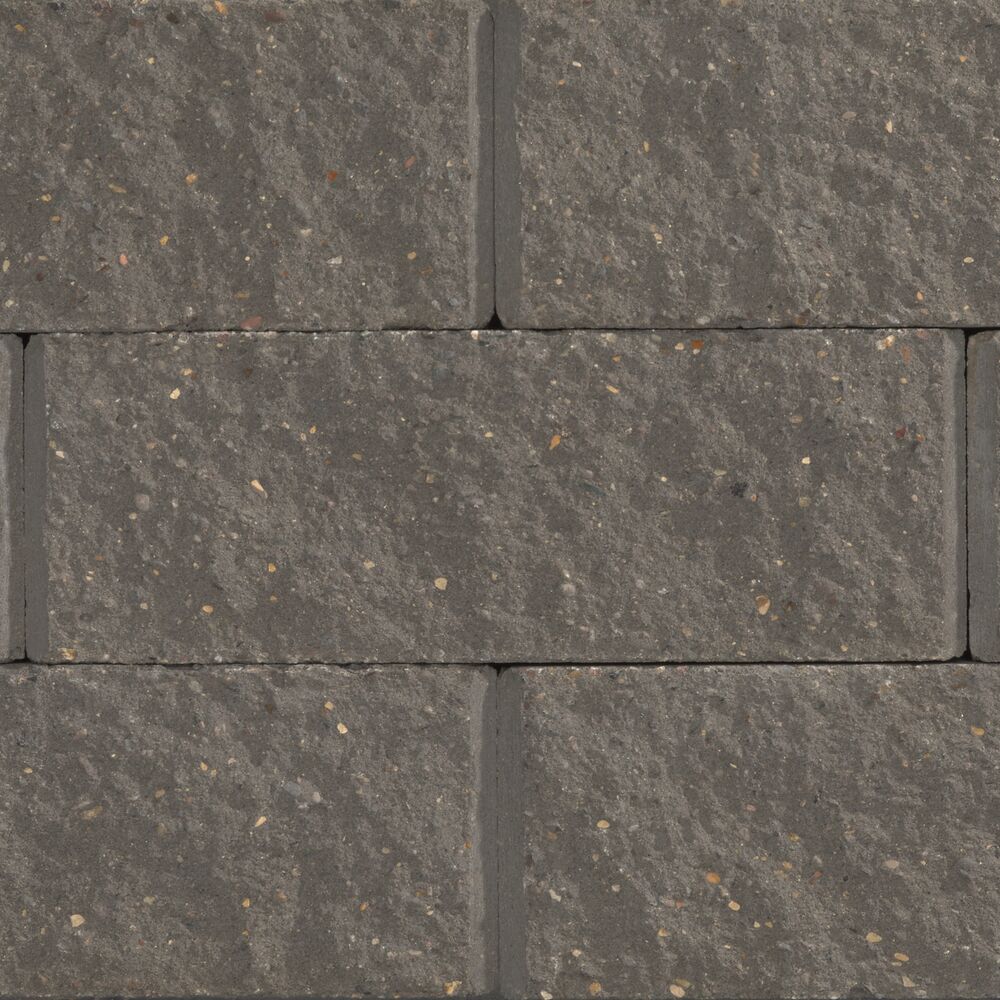

- Colors: Charcoal, Tan, Gray, Iron Bay, Teak
Ordering notes
- Order caps separately.
- Full pallets are heavy. Check the pallet weight above against your equipment's rated lifting capacity before unloading.
- Contact us for current availability and lead time.
- Color can vary between production runs — order your full project quantity at one time.
