Isokern Isopanel Outdoor Kitchen Panel System
Isopanel 34x24x3
$140.00
Skip to product information
In stock
Isokern Isopanel Outdoor Kitchen Panel System
$140.00

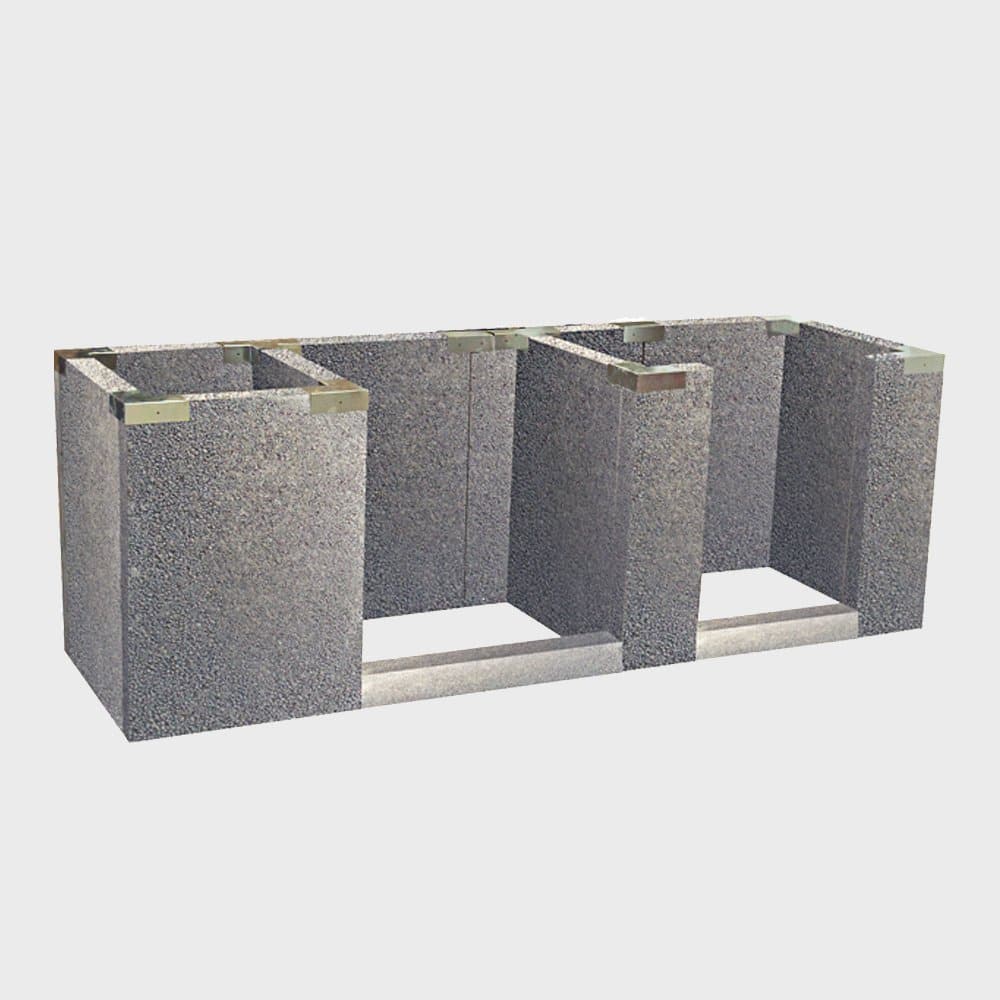

Isopanels are Earthcore's lightweight volcanic pumice panels for building outdoor kitchen islands without block. Panels are set on a mortar bed, joined with Earthcore adhesive and locked together with Isopanel clips and Tapcon screws, then cut for appliances with a diamond blade. Finish with stone, stucco or tile and a countertop.
How it's sold
Priced each. Enter the number of units you need as the quantity.
Ordering at a glance
- Panel size: 34 x 24 x 3 in
- Panel weight: About 65 lb each, dry (pumice only)

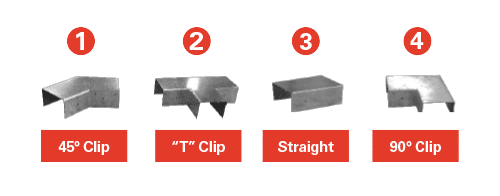

- Clips: Straight, T, 45 and 90 degree; fastened with Tapcon screws
- Adhesive: 1/4 in bead of Earthcore adhesive at every panel joint; 5 gal pail
- Appliance support: 2x4s under doors, drawers and grills, 1/4 in Tapcons
- Grill exhaust: Cut 2 x 2 in min. opening at rear
Specifications
- Panel size: 34 x 24 x 3 in
- Material: Volcanic pumice
- Clip styles: Straight, T, 45 degree and 90 degree
- Assembly: 1/4 in bead of Earthcore adhesive between panels; clips secured with Tapcon screws
- Cutting: Circular or tile saw with diamond blade
- Grill openings: Cut a 2 x 2 in minimum exhaust opening at the rear when a grill is installed
Ordering notes
- Check that the base slab can carry the finished kitchen weight.
- Support doors, drawers and grills with framing below the appliance per the spec sheet.
- Contact us for current availability and lead time.
