SRW 3 Series Geogrid 6x150
$325.29
Skip to product information
In stock
SRW 3 Series Geogrid 6x150
$325.29

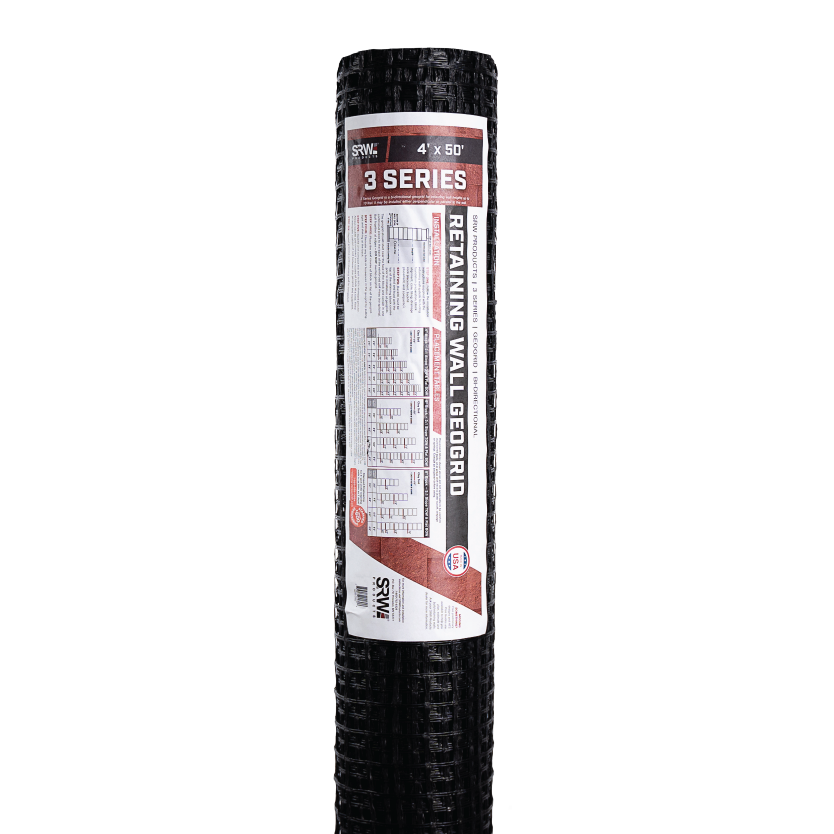

3 Series is a bi-directional geogrid woven from high-tenacity polyester yarn. It reinforces the soil behind segmental retaining walls and on steep slopes. SRW rates it for walls up to 10 ft, following the wall engineer's layout.
How it's sold
Priced each. Enter the number of units you need as the quantity.
Each roll is 6 ft x 150 ft (900 sq ft, or 100 sq yd).
Ordering at a glance
- Roll size: 6 ft x 150 ft
- Area per roll: 900 sq ft (100 sq yd)
- Rolls per pallet: 30
- Wall length per layer: Roll area ÷ grid embedment length (e.g., 900 sq ft ÷ 6 ft embedment = about 150 ft of wall per layer)
Pallet counts and weights are approximate and can vary by manufacturing plant.
Specifications
- Type: Bi-directional woven polyester geogrid
- Long-term design strength (LTDS): 1,161 lb/ft
- Wall height: Designed for walls up to 10 ft
- Roll size: 6 ft x 150 ft
- Comparable to: Mirafi 2XT, Strata SGU30/SG150 (per SRW catalog)
- Uses: Retaining walls, steep slopes
Ordering notes
- Grid length and number of layers come from the wall design or the block maker's chart.
- Contact us for current availability and lead time.
