SRW SS5 Woven Paver Underlayment
4'x100'
$97.78
Skip to product information
In stock

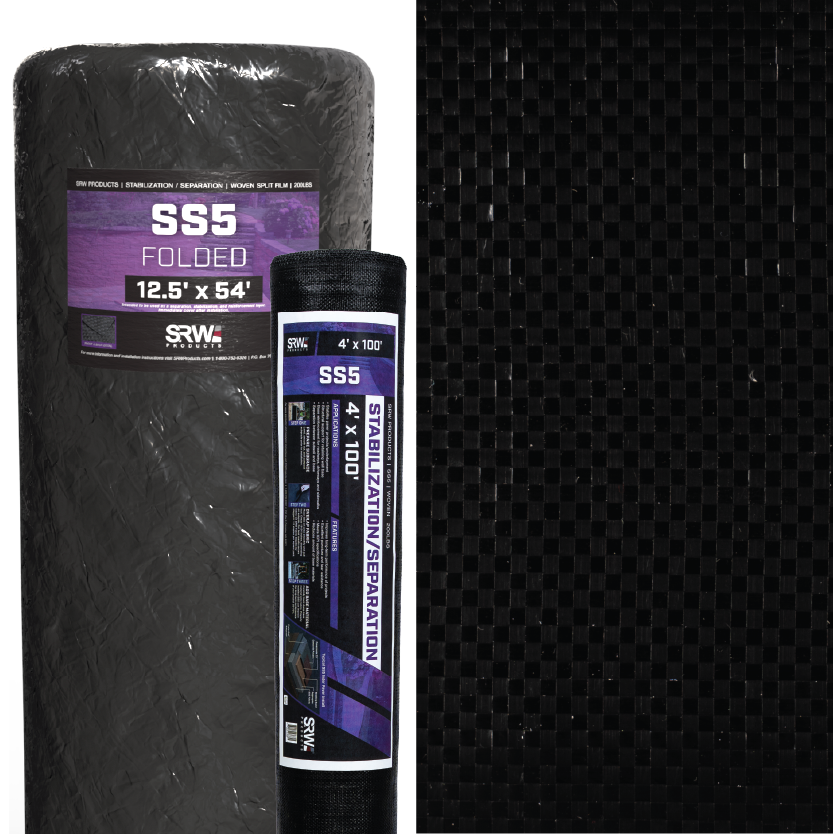

SRW SS5 Woven Paver Underlayment
$97.78
SS5 is a 200 lb woven slit-film polypropylene fabric that goes between subsoil and base under pavers, retaining wall bases, driveways and walks. It keeps base stone from mixing into soft subgrade and adds strength. It meets ICPI specifications.
How it's sold
Priced each. Enter the number of units you need as the quantity.
Rolls cover 400 sq ft (4x100), 600 sq ft (6x100), 675 sq ft (12.5x54 folded) or 1,350 sq ft (12.5x108 folded).
Ordering at a glance
- 4 x 100 ft roll: 400 sq ft (44.44 sq yd); 11 per carton
- 6 x 100 ft roll: 600 sq ft (66.67 sq yd); 20 per bundle, 80 per pallet
- 12.5 x 54 ft folded: 675 sq ft (75 sq yd); 30 per pallet
- 12.5 x 108 ft folded: 1,350 sq ft (150 sq yd); 20 per pallet
Specifications
- Type: Woven slit-film polypropylene, 200 lb grade; AASHTO M288 Class III (stabilization/separation)
- Grab tensile: 200 lb (ASTM D4632)
- CBR puncture: 700 lb (ASTM D6241)
- Mullen burst: 400 psi
- Trap tear: 75 lb
- Water flow: 5 gpm/sq ft; permittivity 0.05 sec-1
- AOS: US Sieve #40
- UV resistance: 70% strength retained at 500 hr
Ordering notes
- Allow 18–24" overlap at seams when figuring rolls.
- Contact us for current availability and lead time.
