SRW Universal Geogrid
4'x50'
$87.88
Skip to product information
In stock

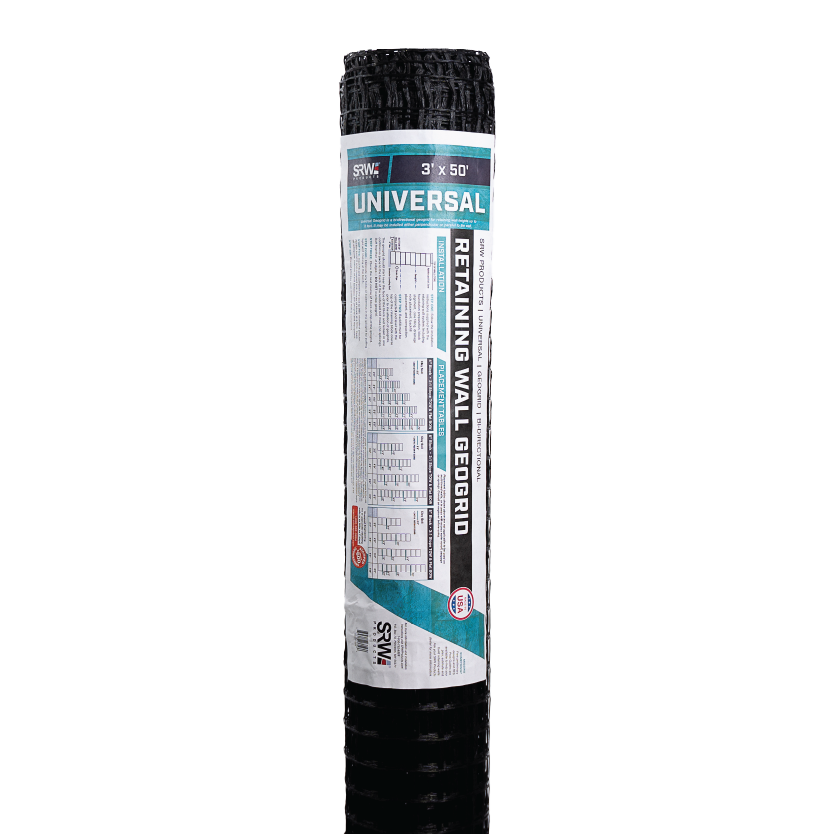

SRW Universal Geogrid
$87.88
Universal is SRW's entry-level bi-directional geogrid: PVC-coated polyester yarn for reinforcing soil behind smaller segmental retaining walls. SRW rates it for walls up to 6 ft. It resists biological degradation and common soil chemicals.
How it's sold
Priced each. Enter the number of units you need as the quantity.
The 4x50 roll covers 200 sq ft and the 6x50 roll covers 300 sq ft.
Ordering at a glance
- 4 x 50 ft roll: 200 sq ft (22.22 sq yd); 10 rolls per carton
- 6 x 50 ft roll: 300 sq ft (33.33 sq yd); 40 rolls per pallet
- Wall length per layer: Roll area ÷ grid embedment length (e.g., 300 sq ft ÷ 4 ft embedment = about 75 ft of wall per layer)
Specifications
- Type: Bi-directional, PVC-coated high-strength polyester
- Long-term design strength (LTDS): 688 lb/ft
- Wall height: Designed for walls up to 6 ft
- Roll sizes: 4 ft x 50 ft, 6 ft x 50 ft
- Uses: Retaining walls, steep slopes
Ordering notes
- Grid length and number of layers come from the wall design or the block maker's chart.
- Contact us for current availability and lead time.
