Belgard Ashlar Tandem Wall
Wall Block / Newport Gray
$29.00
Skip to product information
In stock
Belgard Ashlar Tandem Wall
$29.00

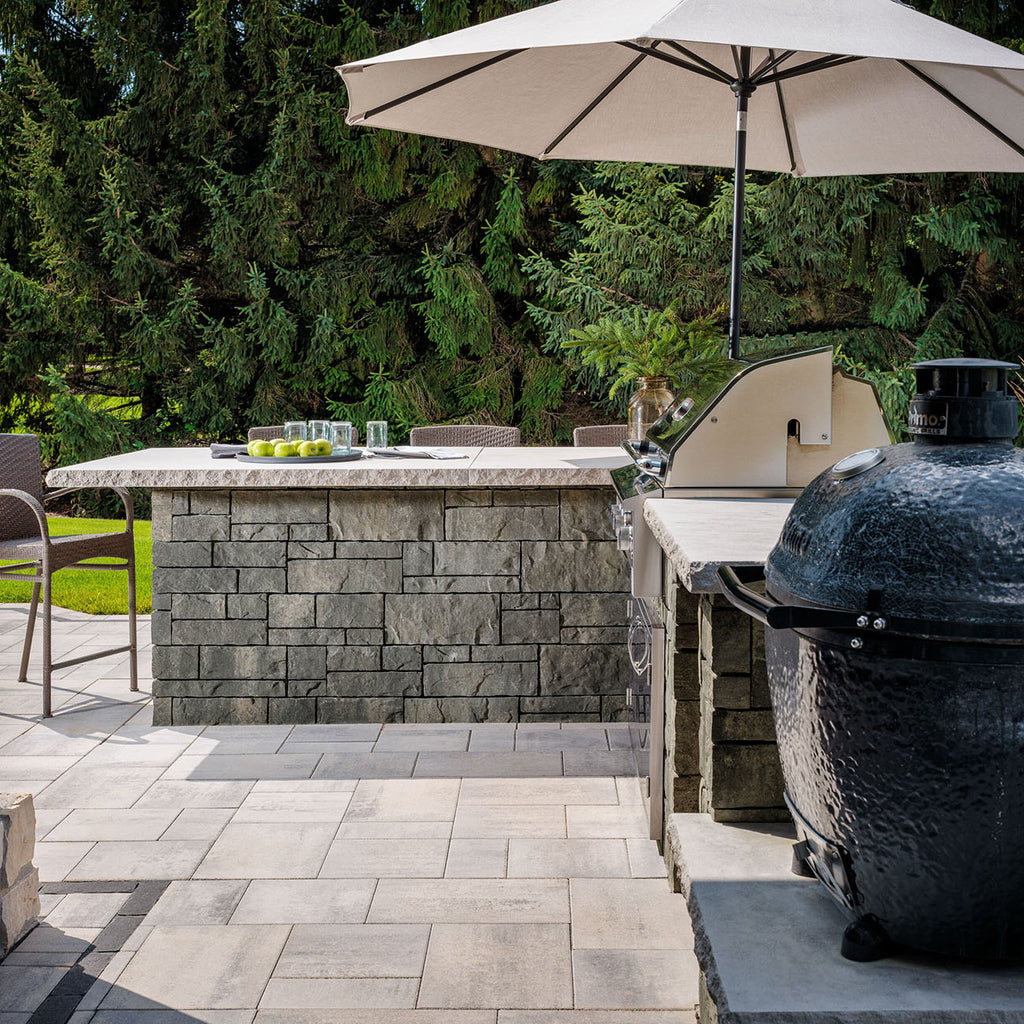

Ashlar Tandem is a 3-size veneer-style wall unit with a chiseled face and virtual joints that give a random stone look. Units connect to the Tandem system to build retaining and freestanding walls, pillars, kitchens and seating. Column units are available for pillars.
How it's sold
Priced per square foot. Enter your total square footage as the quantity — we recommend adding 5–10% for cuts and waste.
Ordering at a glance
- Wall block full pallet: 69.3 sq ft of wall face; 90 units (30 of each size); 6 layers (11.55 sq ft each); about 2,082 lbs
- Wall weight: about 30 lbs per sq ft (2,082 ÷ 69.3)
- Column unit full pallet: 45 units; 45.43 sq ft; 5 layers of 9; about 1,351 lbs
- Note: Figures are from Belgard's 2026 Northfield Pro Consultation Guide (plants: Shakopee MN, Morris IL, Mundelein IL, Menomonee Falls WI); where it splits IL vs MN, MN figures are used.
Pallet counts and weights are approximate and can vary by manufacturing plant.
Specifications
- Wall units: 7 x 13 3/16, 7 x 15 3/16, 7 x 18 7/16 in; 2 5/8" thick
- Column unit: 7 x 18 7/16 x 2 5/8 in
- Setback: 1/2" per unit (4° batter)
- Max heights: Gravity 3 ft; freestanding 28"; reinforced up to 8 ft
- Min. radius: 6 ft outside
- Install: Tandem Modular Block or Omni Connectors

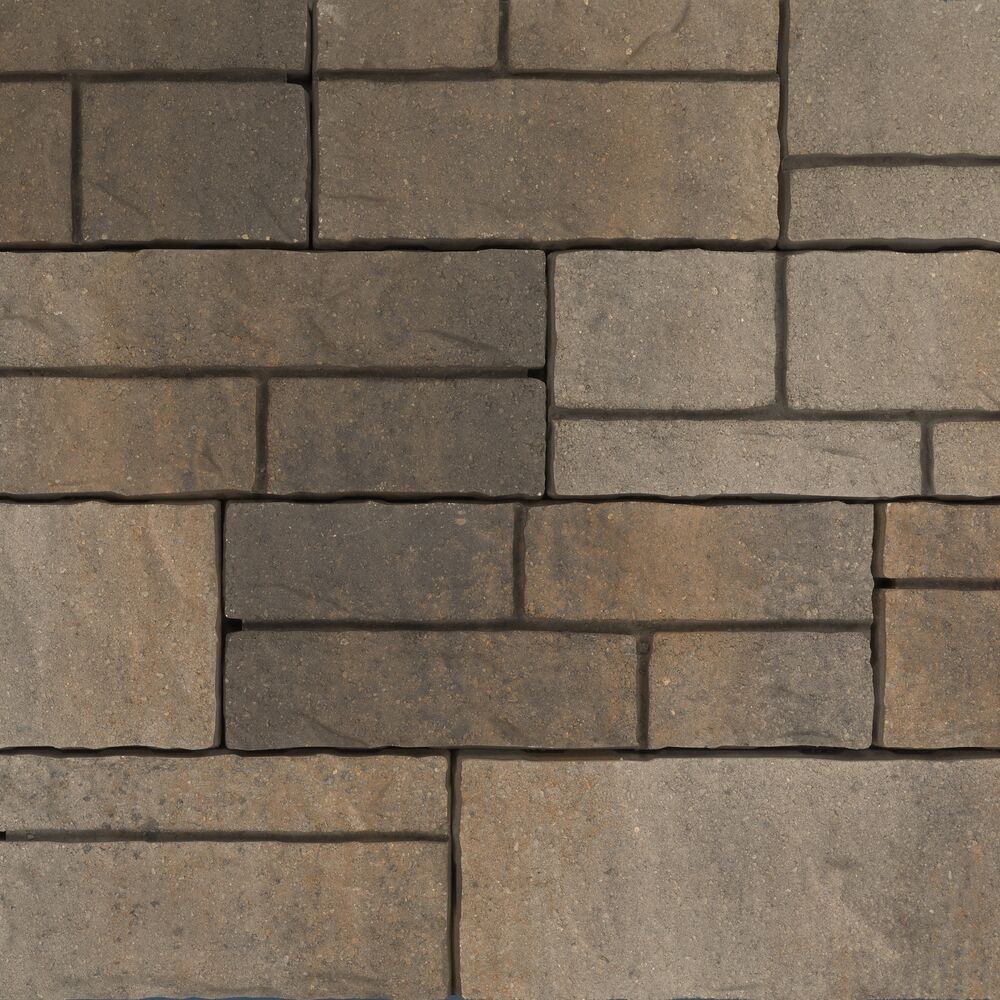

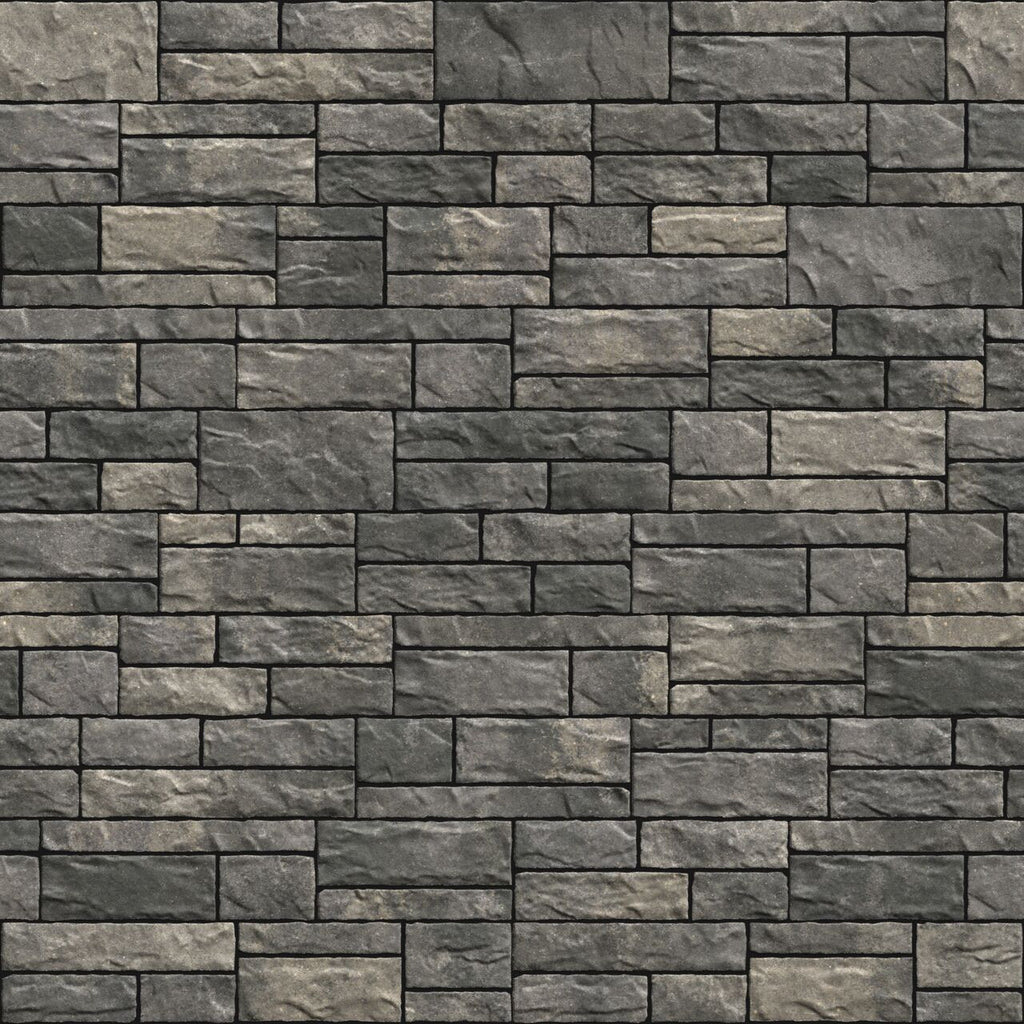

- Colors: Newport Gray, Scandina Gray, Shelby Blend
Ordering notes
- Tandem Modular Blocks, connectors, U-Start base blocks and caps are sold separately.
- Full pallets are heavy. Check the pallet weight above against your equipment's rated lifting capacity before unloading.
- Contact us for current availability and lead time.
- Color can vary between production runs — order your full project quantity at one time.
