Belgard Diamond Pro Smooth Wall
Wall Block / Midnight
$19.08
Skip to product information
In stock
Belgard Diamond Pro Smooth Wall
$19.08

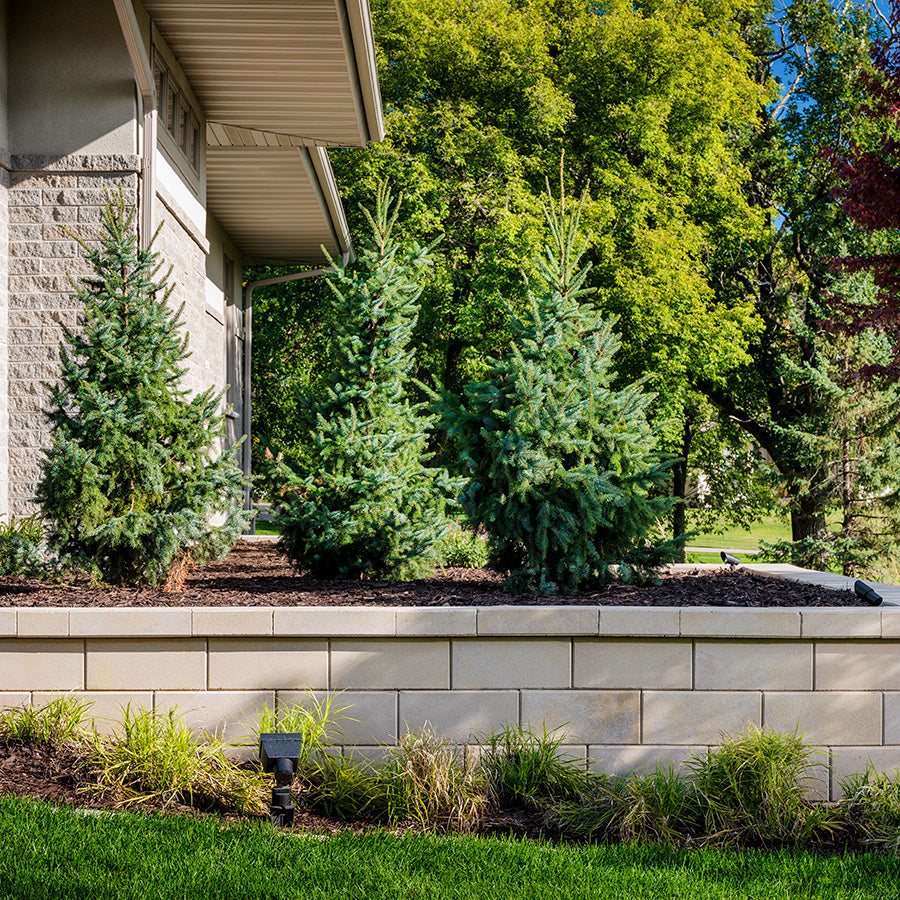

Diamond Pro Smooth pairs a sleek, smooth face with the Diamond Pro rear-lip retaining system. It suits modern retaining walls, columns and steps. Matching corners and caps finish the wall.
How it's sold
- Wall Block, Corner Block: priced per block
- Wall Cap: priced per cap
Enter the number of units for each option as the quantity.
Wall cap full pallet: 54 caps (about 67.5 linear ft), about 3,079 lbs.

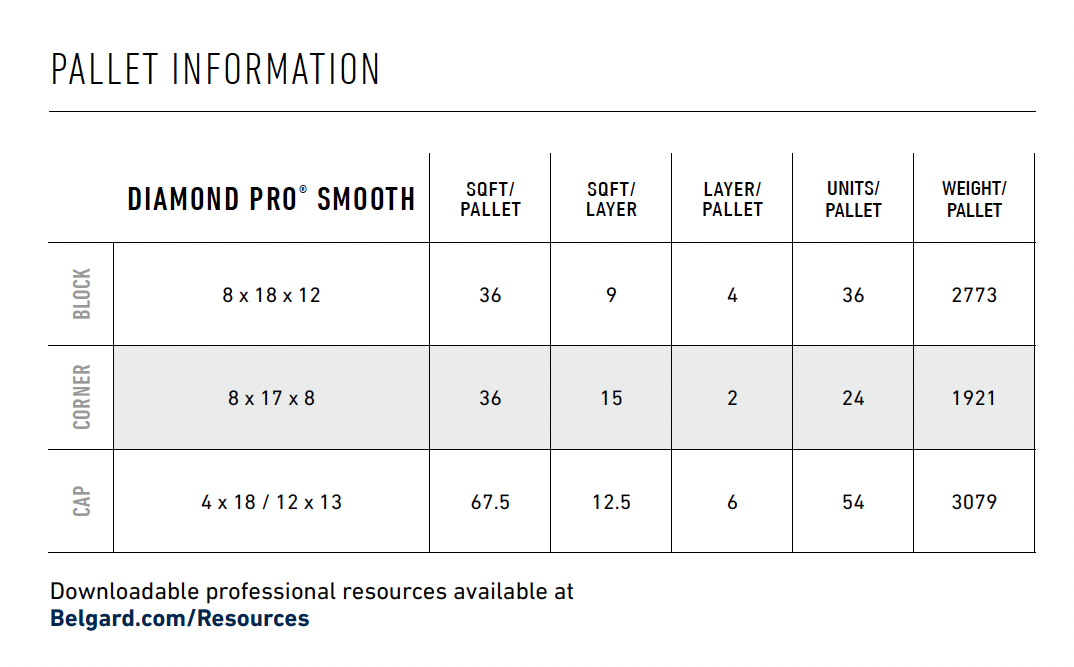

Ordering at a glance
- Wall block full pallet: 36 blocks; 36 sq ft of wall face; 4 layers of 9; about 2,773 lbs
- Face per block: 1.0 sq ft; about 77 lbs each
- Corner full pallet: 24 corners; 2 layers; about 1,921 lbs (about 80 lbs each)
- Cap full pallet: 54 caps; 67.5 linear ft; 6 layers; about 3,079 lbs
- Cap coverage: 1.25 linear ft (15") per cap; about 57 lbs each
- Note: Figures are from Belgard's 2026 Northfield Pro Consultation Guide (plants: Shakopee MN, Morris IL, Mundelein IL, Menomonee Falls WI); where it splits IL vs MN, MN figures are used.
Pallet counts and weights are approximate and can vary by manufacturing plant.
Specifications
- Wall block: 8 x 18 x 12 in
- Setback / batter: 7.1°
- Max gravity height: 4 ft incl. buried course; taller with engineered geogrid
- Min. radius: 4 ft outside (top course), 6 ft inside (base course)
- Corner: 8 x 17 x 8 in
- Cap: 4 x 18/12 x 13 in (tapered)

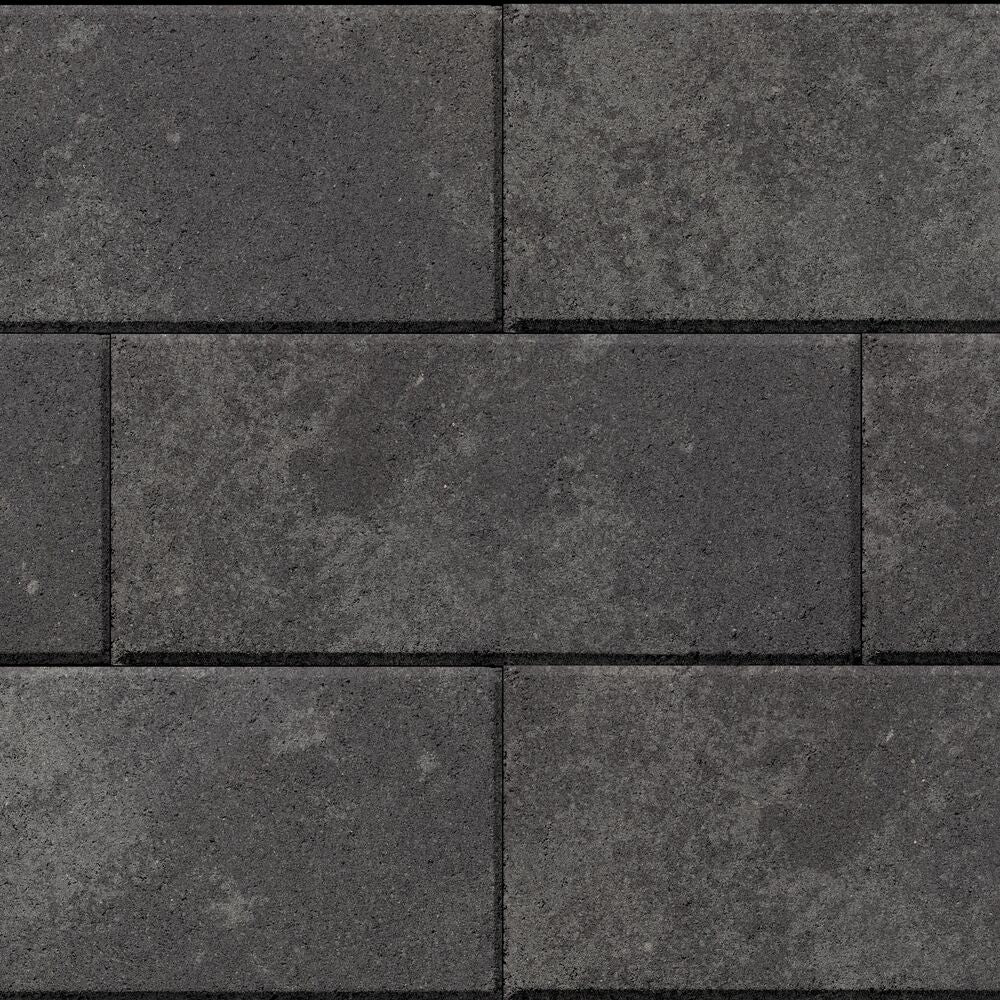

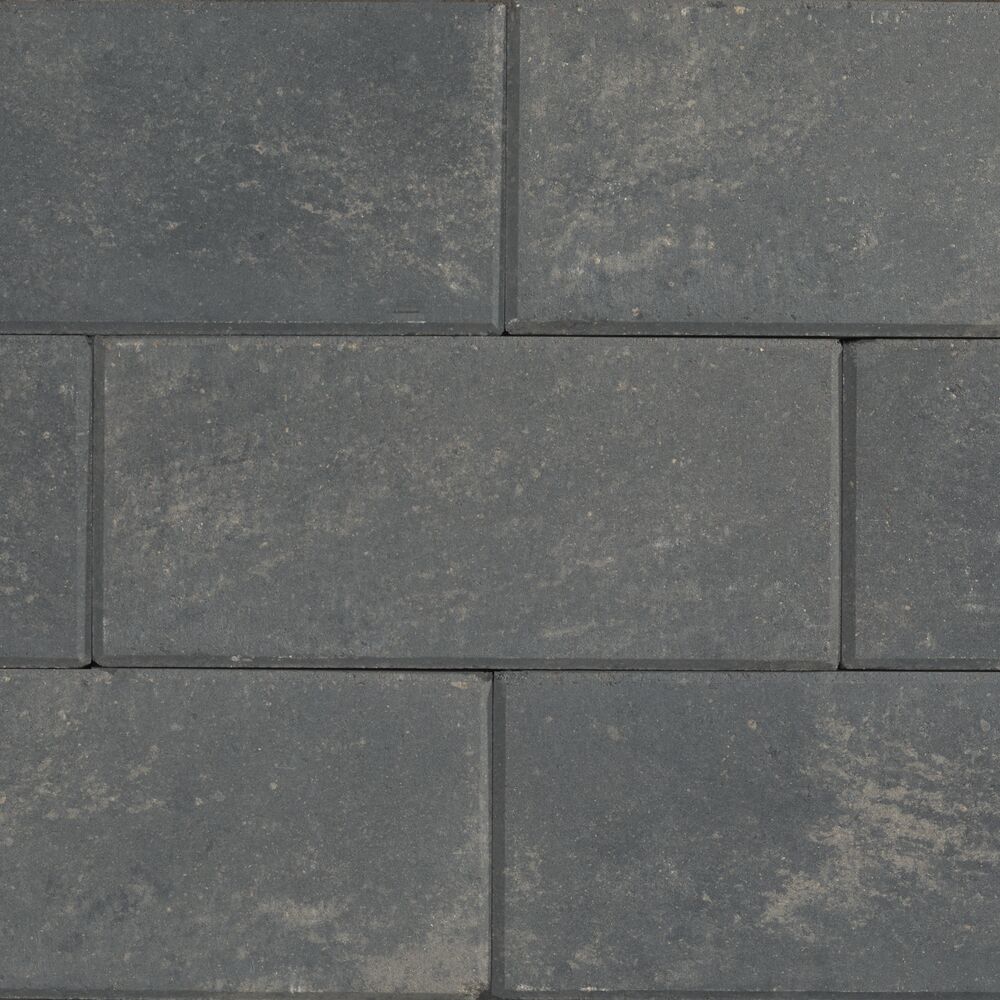

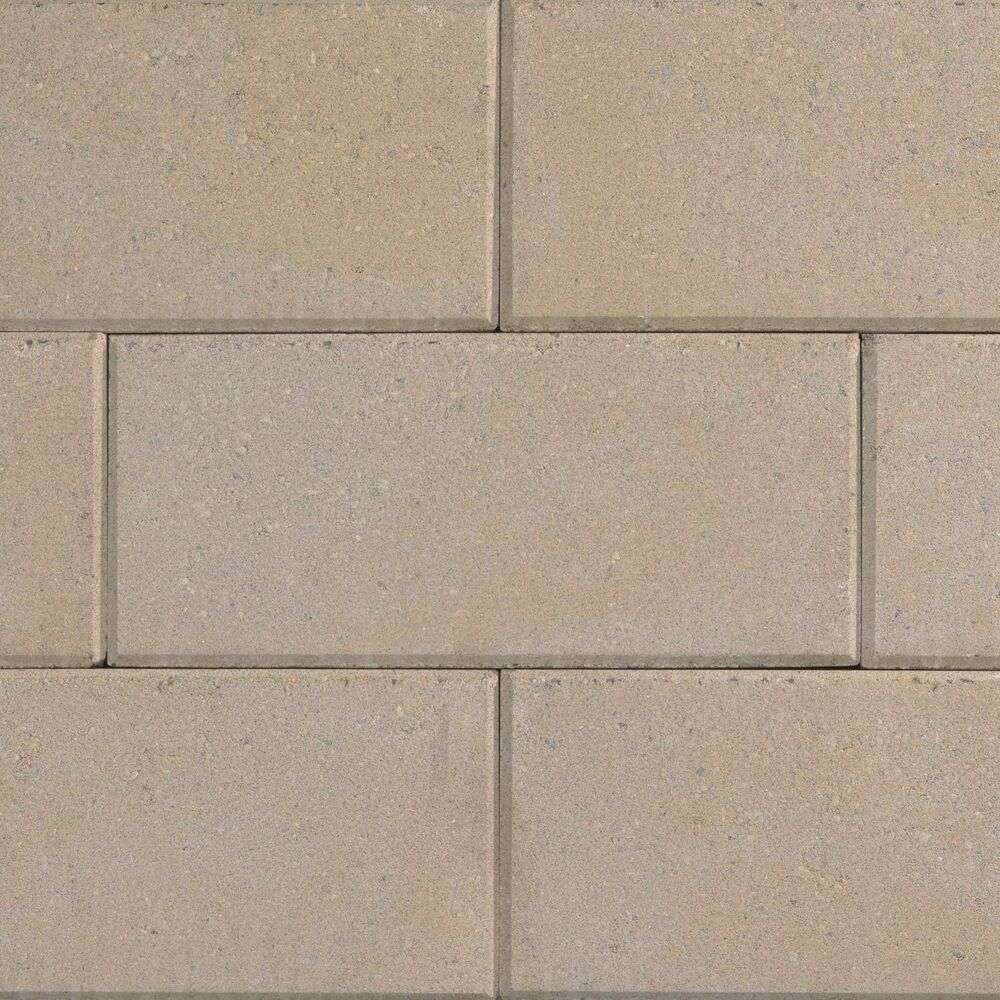

- Colors: Midnight, Moonlight, Newport Gray
Ordering notes
- Order caps and corners separately.
- Full pallets are heavy. Check the pallet weight above against your equipment's rated lifting capacity before unloading.
- Contact us for current availability and lead time.
- Color can vary between production runs — order your full project quantity at one time.
